Description
Against dry running
The POOLSANA water flow sensor monitors whether there is movement in the water line. If circulation stops, the device plugged into it is switched off; as soon as water flows, power is restored. This way the UV-C lamp does not burn in an empty pipe.
It was created for UV-C systems, but also works with other electrical loads within the limit of 10 A / 2300 W.
Strengths
- dry-run protection by means of a flow sensor;
- cable, Schuko plug and socket outlet are factory-fitted – ready to use;
- turning the Ø 63/50 mm reducer selects a threaded or solvent-weld connection;
- suitable for UV-C and for other appliances up to 10 A / 2300 W.
Data
| Type | pressure switch (flow sensor) |
|---|---|
| Brand | MTH |
| Code | 252567 |
| Function | switches the load on/off according to flow |
| Max. load | 10 A / 2300 W |
| Electrical part | power cable, Schuko plug, built-in socket outlet |

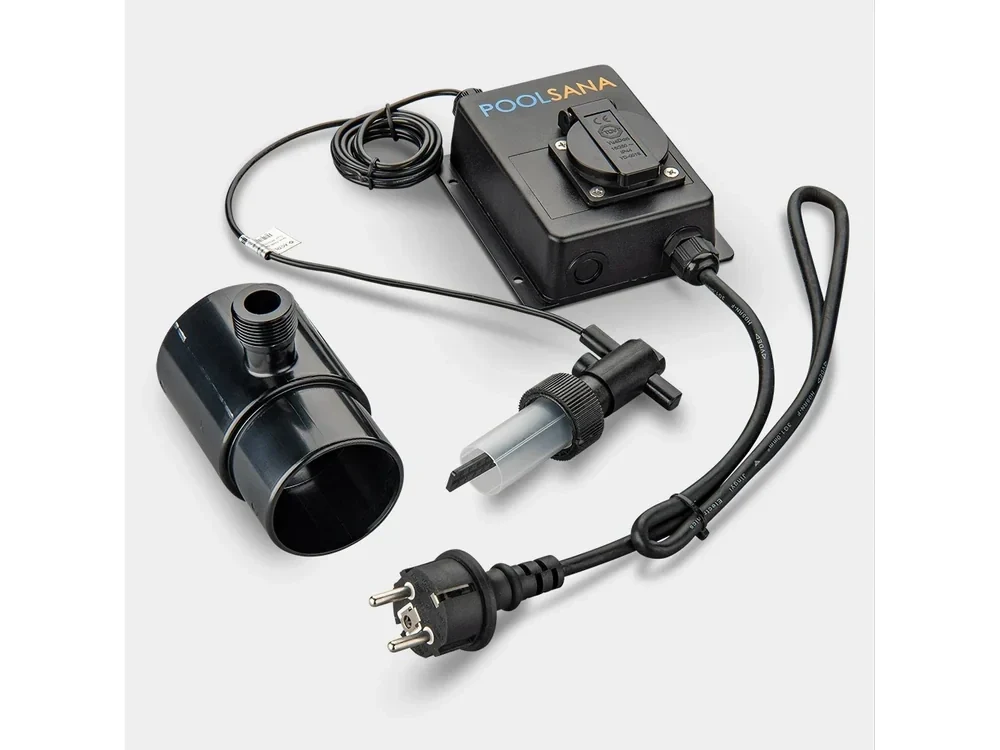

| Water part | T-piece with paddle sensor, transparent solvent-weld sockets Ø 63 mm, reducer Ø 63/50 mm |
| Application | UV-C systems and other electrical appliances |
How to connect it
- Install the T-shaped piece with the opening for the paddle sensor into the pipe.
- Glue on the transparent sockets Ø 63 mm; on one side the connection reduces to Ø 50 mm.
- Turn the Ø 63/50 mm reducer according to your preference – thread or solvent weld.
- Plug the load into the socket outlet and the Schuko plug into a mains socket.
Questions
Is it only for UV-C?
No, it is suitable for any appliance up to 10 A / 2300 W.
Does it have a plug?
Yes, a Schuko type, plus a built-in socket for the appliance.
