Description

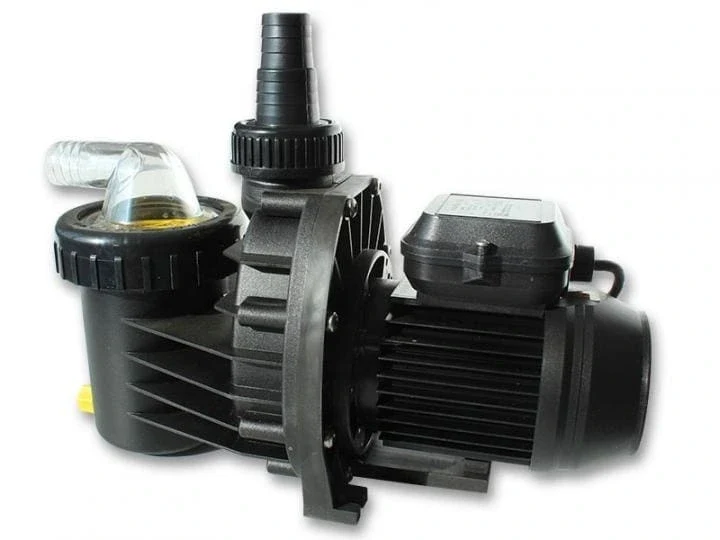

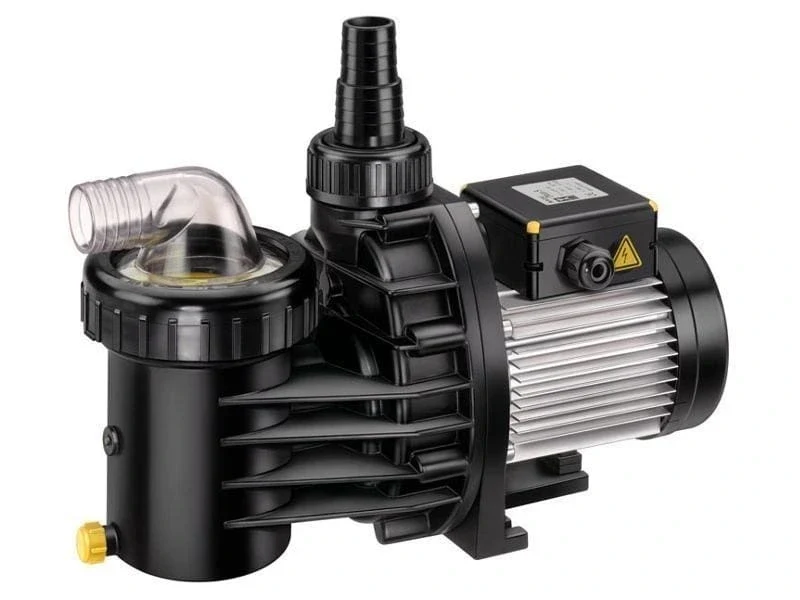

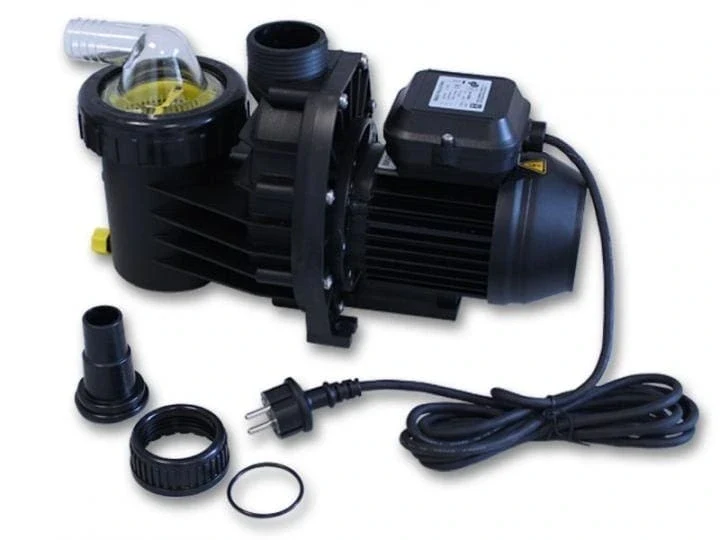

BADU® Picco 5 is a pump from the German manufacturer SPECK that draws water in by itself at start-up, so it is easy to get running. It is supplied with connection accessories and is selected as a replacement in the Azuro 5 sand filter set.
The pump in brief
- Self-priming design – no need to fill it manually.
- Capacity of 4–5 m³/h, depending on operating conditions.
- Consumption of 390 W at ordinary mains voltage.
- Made in Germany.
Specifications
| Model | BADU® Picco 5 |
|---|---|
| Manufacturer | SPECK, Germany |
| Code | PATC5 |
| Type | Self-priming filter pump |
| Capacity | 4–5 m³/h |
| Power | 390 W |
| Maximum head | 11 m |
| Rated current | 1.95 A |
| Supply voltage | 220–240 V |
| Frequency | 50 Hz |
| Intended use | Replacement in the Azuro 5 sand filter set |
Why this particular part
The pump comes from the same series as the set, so it fits without modification, and replacing it is quick and does not interrupt the season. Because it runs on standard 220–240 V, it does not require a special power supply.
Safe installation
- Position the pump at least 3.5 m from the edge of the pool.
- Before you begin, check the condition of the electrical installation.
- The circuit must be protected by a residual-current device (RCD) of up to 30 mA.
- Read the manufacturer's instructions before connecting the pump to the filter.
Important: these requirements are a condition for safe operation near a pool. If you are not sure how to meet them, consult an electrician.
Not sure about compatibility?
Send us the model of your unit and a photo of the worn part – our team will check whether they fit before you decide to buy.
