Description

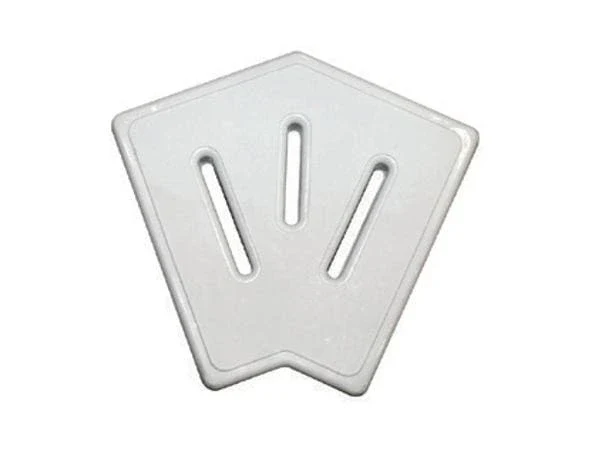

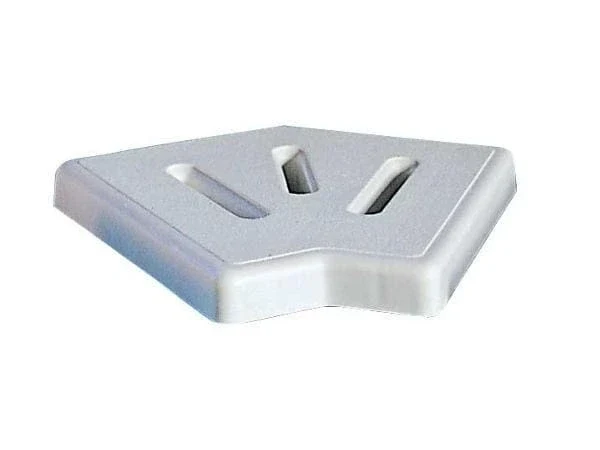

The 45° corner is a polypropylene part that is installed where the overflow channel changes direction, and it goes together with the overflow grating. It belongs to Atlas Pool's "P.P. 45° – 90° Köşe Parçası" series and is made in Turkey. There are four sizes, matching the grating widths – from 14.5 to 30.0 cm.
Why you need it
- A finished channel – without a corner piece, the ends look unfinished.
- UV-protected polypropylene – withstands the weather and pool products.
- Subtle relief against slipping.
- Smooth transition between the individual grating elements.
Technical data
| Manufacturer | Atlas Pool |
|---|---|
| Material | UV-stabilised polypropylene |
| Purpose | corner piece for overflow grating |
| Angle | 45° |
| Available sizes | four steps between 14.5 and 30.0 cm |
| Quantity per pack | 20 pieces |
| Weight | 0.10–0.60 kg, depending on the size |
| Sold per | piece |
Sizes, height and weight
The data comes from the Atlas Pool catalogue, and one pack contains 20 corners.
- code HKE073 – 14.50 × 14.50 cm; height h = 145 mm, weight 0.10 kg
- code HKE075 – 19.50 × 19.50 cm; height h = 195 mm, weight 0.20 kg
- code HKE077 – 24.50 × 24.50 cm; height h = 245 mm, weight 0.45 kg
- code HKE079 – 30.00 × 30.00 cm; height h = 300 mm, weight 0.60 kg
How to choose the size
The corner must be the same size as the width of the grating. For a 24.5 cm grating, take a 24.5 × 24.5 cm corner – this way the elements fit together snugly.
Installation
The 45° corner is placed in the bend of the channel together with the grating, and the transition between the parts is smooth. Order as many pieces as the pool has corners.
Which gratings it is compatible with
The piece is designed for Atlas Pool plastic gratings from the Single, Double, Wavy, Grift, Rainy and Standard series. The relief reduces slipping, and the UV additive in the material slows fading; water and pool chemicals do not harm it.
